| 제조업체 | ANALOG DEVICES |
|---|---|
| 제조업체 부품 번호 | MAX17262XEVKIT#복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 2914242 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩161,584 |
제품 정보
| 제조업체 | ANALOG DEVICES |
|---|---|
| 제조업체 부품 번호 | MAX17262XEVKIT#복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 2914242 |
| 기술 데이터 시트 | |
| Kit Application Type | Power Management - Battery |
| Application Sub Type | Fuel Gauge |
| Silicon Core Number | MAX17262REWL+ |
| Silicon Manufacturer | Analog Devices |
| Kit Contents | Eval Kit MAX17262REWL+, DS91230+ USB Interface, RJ-11 Connection Cable, GUI Software |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

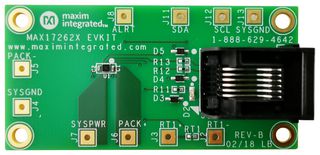

MAX17262X evaluation kit (EV kit) is a fully assembled and tested SMD PCB to evaluate the stand-alone ModelGauge™m5 host-side fuel-gauge IC for lithium-ion (Li+) batteries in handheld and portable equipment. This EV kit includes the DS91230+ USB interface, IC Evaluation-board and RJ-11 connection cable. Suitable applications are Bluetooth headset cases, handheld computers and terminals, health and fitness monitors, home and building automation, sensors, medical devices, toys, wearables and smartwatches.
- ModelGauge™ m5 algorithm
- Monitors from 1S cell packs
- Battery pack input voltage range of 2.3V to 4.9V
- Thermistor measurement network
- Windows 7 or newer compatible software
- Proven PCB layout
- Fully assembled and tested
목차
IC evaluation board, DS91230+ USB interface, RJ-11 connection cable.
메모
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
기술 사양
| Kit Application Type | Power Management - Battery |
|---|---|
| Silicon Core Number | MAX17262REWL+ |
| Kit Contents | Eval Kit MAX17262REWL+, DS91230+ USB Interface, RJ-11 Connection Cable, GUI Software |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | Fuel Gauge |
|---|---|
| Silicon Manufacturer | Analog Devices |
| Product Range | - |
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Philippines 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .02 |
