MAX17332X2EVKIT#
Evaluation Kit, MAX17332X22+, Charger, Fuel Gauge, Internal Self-Discharge Detection, Protector

| 제조업체 | ANALOG DEVICES |
|---|---|
| 제조업체 부품 번호 | MAX17332X2EVKIT#복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 4241857 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩175,864 |
제품 정보
| 제조업체 | ANALOG DEVICES |
|---|---|
| 제조업체 부품 번호 | MAX17332X2EVKIT#복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 4241857 |
| 기술 데이터 시트 | |
| Kit Application Type | Power Management - Battery |
| Application Sub Type | Charger, Fuel Gauge, Internal Self-Discharge Detection, Protector |
| Silicon Core Number | MAX17332X22+ |
| Silicon Manufacturer | Analog Devices |
| Kit Contents | Evaluation Board MAX17332X22+, I2C Interface, USB Micro-B Cable, Windows Based GUI Software |
| Product Range | - |
| SVHC | Lead (04-Feb-2026) |
제품 개요

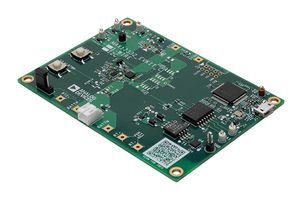

MAX17332X2EVKIT# is a MAX17332 evaluation kit (EV kit). It is a fully assembled and tested surface-mount PCB that evaluates the standalone charger, fuel gauge IC with protector and optional SHA-256 authentication for 1 cell lithium-ion/polymer batteries. The MAX17332 EV kits include the IC evaluation board with integrated I2C interface and USB micro-B cable.
- ModelGauge m5 algorithm
- Charges, monitors and protects a 1S battery
- Full protection solution on-board for evaluation
- Battery voltage (VBATT) range of +2.16V to +4.9V with default hardware
- Input voltage up to 5.7V
- Default current range -5A (discharge) to +2.56A (charge) with 10mohm sense resistor
- Two thermistor measurements
- On-board I2C communication interface with built-In MAXUSB interface
- Windows 7 or newer compatible software
- Proven PCB layout
목차
Evaluation board, USB micro-B cable.
메모
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
기술 사양
| Kit Application Type | Power Management - Battery |
|---|---|
| Silicon Core Number | MAX17332X22+ |
| Kit Contents | Evaluation Board MAX17332X22+, I2C Interface, USB Micro-B Cable, Windows Based GUI Software |
| SVHC | Lead (04-Feb-2026) |
| Application Sub Type | Charger, Fuel Gauge, Internal Self-Discharge Detection, Protector |
|---|---|
| Silicon Manufacturer | Analog Devices |
| Product Range | - |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Philippines 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | Y-Ex RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | Lead (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .00001 |
