MAX17625EVKIT#

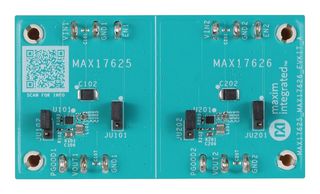

MAX17625 evaluation kit (EV kit) provides a proven design to evaluate the performance of the MAX17625 converter. It operates over an input range from 2.7V to 5.5V and deliver up to 700mA output current. The devices are configured to demonstrate optimum performance and component sizes in the EV kit. The MAX17625 converter delivers up to 700mA at a switching frequency of 2MHz. The converter is configured for a 1.2V output over a 2.7V to 5.5V input range. The EV kit features provisions for selecting the Mode of operation (PWM/PFM), enable input and PGOOD signal.

• MAX17625 offers high 90.6% efficiency (VIN = 3.3V, VOUT = 1.2V, IOUT = 400mA)
• Internal 1ms soft-start time
• Low-profile, surface-mount components
• Proven PCB layout
• Fully assembled and tested
