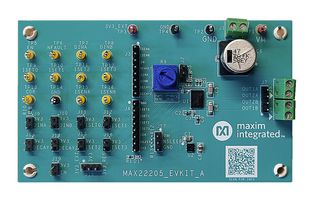

MAX22205EVKIT#

MAX22205 evaluation kit (EV kit) provides a proven design to evaluate the +65V, 7.6A single H-bridge MAX22205 motor driver. The MAX22205 can drive a single brushed DC motor. The MAX22205 IC integrates very low impedance FETs in a single H-bridge configuration with a typical RON (high side + low side) of 0.15ohm. The EV kit features headers, test points and terminal blocks to provide an interface to the MAX22205 motor driver.

• Adjustable tOFF time using an on-board potentiometer
• Configurable Current Drive Regulation (CDR)
• On-board +3.3V regulator to drive MAX22205 logic inputs
• Test points and headers to interface with MAX22205 inputs and current-sense outputs
• Fully assembled and tested proven PCB layout
• Brushed DC motor driver
• Latched valves
• Solenoid driver
• Stepper motor driver
