MAX3107EVKIT+

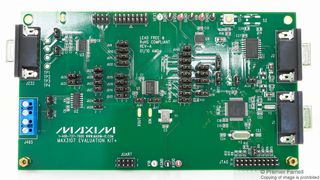

MAX3107EVKIT+ is a MAX3107 evaluation kit (EV kit) that provides a proven design to evaluate the MAX3107 advanced universal asynchronous receiver-transmitter (UART) with 128 words each of receive and transmit first-in/first-out (FIFO) that can be controlled through I2C or high-speed SPIK. The EV kit also includes Windows XPM-, Windows VistaM- and WindowsM 7-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the MAX3107. The EV kit comes with a MAX3107EAG+ installed.

• On-board microcontroller generates I2C- and SPI-compatible signals
• On-board RS-232 and RS-422/RS-485 transceivers
• Headers for user-supplied digital signals
• RS-232 connection (Cable Included)
• Proven PCB layout
• Fully assembled and tested

목차

MAX3107 evaluation board, RS-232 cable.

메모

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
