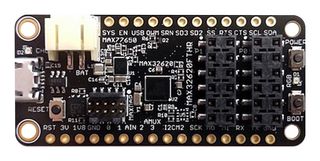

MAX32620FTHR#

The MAX32620FTHR# is an evaluation Kit for the MAX32620 device. This evaluation board is a rapid development platform designed to help engineers quickly implement battery optimized solutions with MAX32620 Arm® Cortex®-M4 microcontroller with FPU. The board also includes the MAX77650 ultra-low power PMIC and MAX17055 fuel gauge to provide efficient power conversion and battery management with minimal board space. The form factor is a small 0.9in x 2.0in dual-row header footprint that is compatible with breadboards and off-the-shelf peripheral expansion boards. Typical applications include fitness monitors, portable medical devices, sensor hub, sport watches, wearable and medical patches.

• Convenient development platform
• Breadboard and feather wing compatible
• Pmod compatible sockets
• Supports SPI, UART, I2C and GPIO
• Accessible from both sides of board
• Integrated battery management (single cell Li+ charger, fuel gauge)
• User interface peripherals (two RGB LEDs, two pushbuttons)
• 12-pin Pmod™ compatible socket connectors
• Single-Cell Li+ charger with fuel gauge

애플리케이션

Medical, IoT (Internet of Things), Electronics Design
