| 제조업체 | ANALOG DEVICES |
|---|---|
| 제조업체 부품 번호 | MAX32672FTHR#복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 4568592 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩53,770 |
제품 정보
| 제조업체 | ANALOG DEVICES |
|---|---|
| 제조업체 부품 번호 | MAX32672FTHR#복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 4568592 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | Analog Devices |
| No. of Bits | 32bit |
| Silicon Family Name | DARWIN |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4 |
| Silicon Core Number | MAX32672 |
| Kit Contents | Evaluation Board MAX32672 |
| Product Range | - |
| SVHC | Lead (04-Feb-2026) |
제품 개요

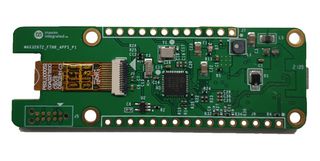

MAX32672FTHR# is a rapid development platform that helps engineers quickly implement complex sensor solutions using the MAX32672 Arm® Cortex®-M4. The board also includes the MAX8819 PMIC for battery and power management. The form factor is a small, 0.9in by 2.6in, dual row header footprint that is compatible with Adafruit® FeatherWing peripheral expansion boards. The board includes an OLED display, a RGB indicator LED, and a user pushbutton. The MAX32672FTHR provides a power-optimized flexible platform for quick proof-of-concepts and early software development to enhance time to market. Applications includes battery-powered medical devices, motion/motor control, industrial sensors, optical communication modules, secure radio modem controller.
- MAX32672 microcontroller (Arm Cortex-M4 processor with FPU up to 100MHz)
- 1MB dual-bank flash with error correction, 200KB SRAM (160KB with ECC enabled)
- 16KB unified cache with ECC, resource protection unit (RPU), memory protection unit (MPU)
- On-board DAPLink debug and programming interface for Arm Cortex-M4
- Breadboard-compatible headers
- Micro USB connector, RGB indicator LED
- User pushbutton, OLED display
- SWD debugger, virtual UART console
메모
MAX8819 PMIC powers the MAX32672FTHR board and is also capable of charging a Li-ion battery (not included).
기술 사양
| Silicon Manufacturer | Analog Devices |
|---|---|
| Silicon Family Name | DARWIN |
| Core Sub-Architecture | Cortex-M4 |
| Kit Contents | Evaluation Board MAX32672 |
| SVHC | Lead (04-Feb-2026) |
| No. of Bits | 32bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | MAX32672 |
| Product Range | - |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Philippines 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS 준수: | Y-Ex RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | Lead (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .113489 |
