| 제조업체 | ANALOG DEVICES |
|---|---|
| 제조업체 부품 번호 | MAX32690EVKIT#복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 4567251 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩138,531 |
제품 정보
| 제조업체 | ANALOG DEVICES |
|---|---|
| 제조업체 부품 번호 | MAX32690EVKIT#복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 4567251 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | Analog Devices |
| No. of Bits | 32bit |
| Silicon Family Name | MAX32690 |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4F |
| Silicon Core Number | MAX32690GTK+ |
| Kit Contents | Brd MAX32690GTK+ w/Preprog Demo, Antenna, Debugger MAX32625PICO w/Cables, 2x Cables, Extra Shunts |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

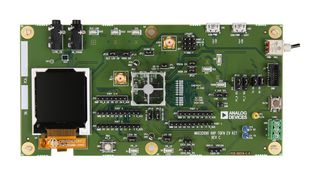

MAX32690EVKIT# is a MAX32690 evaluation kit. It provides a platform for evaluating the capabilities of the MAX32690 microcontroller, which is an advanced system-on-chip (SoC). It features an Arm® Cortex®-M4F CPU for efficient computation of complex functions and algorithms, and the latest generation Bluetooth® 5 Low Energy (Bluetooth LE) radio designed for wearable and hearable fitness devices, portable and wearable wireless medical devices, industrial sensors/networks, internet of things (IoT), and asset tracking.
- Bluetooth SMA connector with a hinged 2.4GHz whip antenna
- 3-pin terminal block for CAN bus 2.0
- Selectable on-board high-precision voltage reference
목차
MAX32690 with a preprogrammed demo, Bluetooth hinged whip antenna, MAX32625PICO debugger with cables, Two USB standard-A to micro-B cables, Extra shunts.
기술 사양
| Silicon Manufacturer | Analog Devices |
|---|---|
| Silicon Family Name | MAX32690 |
| Core Sub-Architecture | Cortex-M4F |
| Kit Contents | Brd MAX32690GTK+ w/Preprog Demo, Antenna, Debugger MAX32625PICO w/Cables, 2x Cables, Extra Shunts |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Bits | 32bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | MAX32690GTK+ |
| Product Range | - |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Philippines 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .000001 |
