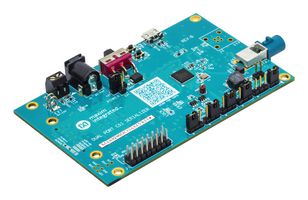

MAX9295DCOAXEVKIT#

MAX9295DCOAXEVKIT# is a MAX9295D coax evaluation kit (EV Kit) that provides a reliable platform for evaluating Maxim’s MAX9295D GMSL2/GMSL1 CSI serializer using a standard FAKRA coax cable. The serializer device supports high-bandwidth, gigabit multimedia serial links (GMSL2/GMSL1) and offers spread spectrum and full-duplex control channel features. The EV kit includes a simple-to-use Windows 10-compatible graphical user interface (GUI) for exercising device features.

• GMSL serializer accepts MIPI CSI v1.3 DPHY v1.2 input
• Converts to GMSL1/GMSL2 serial data through coaxial FAKRA cable
• Accepts CSI input data (dual port, up to four lanes per port)
• Powerful, simple-to-Use GUI for comprehensive device feature evaluation
• USB-control interface (cable Included)
• Board powered by USB, 12V wall adapter, external power supply, or Power-over-Coax (PoC) cable
• Proven PCB layout
• Fully assembled and tested

목차

MAX9295D coax serializer board, Micro-USB cable, +12V DC wall supply.

메모

For complete GMSL evaluation using a standard FAKRA coax cable, order the MAX9295D Coax/HSD EV kit along with a deserializer board.
