MAX96724-BAK-EVK#

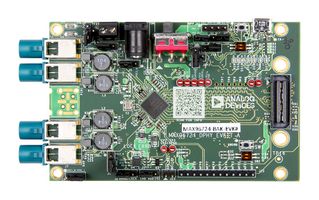

MAX96724-BAK-EVK# is a D-PHY deserializer 3G/6G COAX EV kit. This evaluation kit (EV kit) provides a proven design and reliable platform to evaluate the MAX96724 device using standard FAKRA coaxial cables or a MATE-AX cable. This deserializer device supports high-bandwidth, gigabit multimedia serial links (GMSL-1 or GMSL-2) and offer spread spectrum and full-duplex control channel features. The EV kit includes a simple-to-use Windows 10® or higher compatible graphical user interface (GUI) to exercise device features. The EV kit comes with a MAX96724 IC installed on board.

• Accepts GMSL data from the serializers and converts it into MIPI CSI-2
• Backward-compatible to accept GMSL-1 serial data
• Quad inputs can mix and match GMSL-1 and GMSL-2
• Outputs are compliant to MIPI D-PHY v1.2 and CSI-2 v1.3 specifications
• Windows 10® or higher compatible software support
• USB-controlled Interface (cable included)
• Powerful, simple-to-use GUI for comprehensive device feature evaluation
• Board powered by USB, 12V wall adapter, or external power supply
• Proven PCB layout
• Fully assembled and tested

목차

MAX96724 DPHY EV board, Micro-USB cable, 12V DC wall supply, Coax cable.
