ABX00023

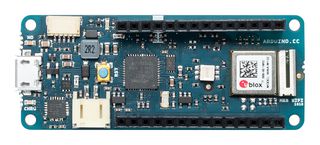

SBC, Arduino MKR WiFi 1010, SAMD21, ARM Cortex-M0+, 32bit, 32KB RAM, 256KB Flash, 8 I/O pins
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

| 제조업체 | ARDUINO |
|---|---|
| 제조업체 부품 번호 | ABX00023복사 |
| 제조업체 표준 리드 타임 | 4주 |
| 주문 코드 | 2917569 |
| Product Range | Arduino MKR |
| AKA | GTIN UPC EAN: 7630049200258 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
주문 가능
제조업체 표준 리드 타임: 4주
입고 시 알림 요청
| 수량 | 가격 |
|---|---|
| 1+ | ₩55,448 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩55,448
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | ARDUINO |
|---|---|
| 제조업체 부품 번호 | ABX00023복사 |
| 제조업체 표준 리드 타임 | 4주 |
| 주문 코드 | 2917569 |
| Product Range | Arduino MKR |
| AKA | GTIN UPC EAN: 7630049200258 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | Microchip |
| No. of Bits | 32bit |
| Silicon Family Name | SAM32 |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M0+ |
| Silicon Core Number | SAMD21 |
| Kit Contents | Development Board MKR WIFI 1010 |
| Product Range | Arduino MKR |
| SVHC | No SVHC (27-Jun-2024) |
제품 개요
Enhanced over the original this board adds wireless connectivity to your devices and easily connects to other Arduino products. Designed to speed up and simplify the prototyping of wireless based IoT applications by taking advantage of the ESP32 module and its low power consumption.
- Low power WiFi with Cryptochip for SHA-256 encrypted secure communication
- Supports the Arduino Software IDE for development and programming
- Integrated Li-Po charging circuit allows the shield to run on battery or external power whilst charging the battery
- 32-bit ARM Cortex-M0+
- 48MHz Clock speed
- Digital I/O pins: 22
- Analogue I/O pins: 7/1
- Interfaces: I2C, I2S, SPI, UART
- Operating voltage: 3.3V
- Input voltage: 5V
애플리케이션
IoT (Internet of Things), Embedded Design & Development
기술 사양
| Silicon Manufacturer | Microchip |
|---|---|
| Silicon Family Name | SAM32 |
| Core Sub-Architecture | Cortex-M0+ |
| Kit Contents | Development Board MKR WIFI 1010 |
| SVHC | No SVHC (27-Jun-2024) |
| No. of Bits | 32bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | SAMD21 |
| Product Range | Arduino MKR |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Italy 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 추후 공고함 |
| SVHC: | No SVHC (27-Jun-2024) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .020865 |
