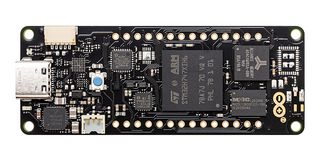

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

| 제조업체 | ARDUINO |
|---|---|
| 제조업체 부품 번호 | ABX00045복사 |
| 제조업체 표준 리드 타임 | 5주 |
| 주문 코드 | 3874820 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
주문 가능
입고 시 알림 요청
| 수량 | 가격 |
|---|---|
| 1+ | ₩66,746 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩66,746
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | ARDUINO |
|---|---|
| 제조업체 부품 번호 | ABX00045복사 |
| 제조업체 표준 리드 타임 | 5주 |
| 주문 코드 | 3874820 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Family Name | STM32 |
| No. of Bits | 32bit |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4F, Cortex-M7F |
| Silicon Core Number | STM32H747XI |
| Kit Contents | Portenta H7 Dev Board STM32H747XI |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
제품 개요
Portenta H7 Lite board is a cost-effective solution, designed for complex environments where radio communication is not suitable or possible. It is perfect for developers who want to leverage the computational power of the Portenta H7, without the need for video output or advanced security features. The Portenta H7 Lite simultaneously runs high-level code and real-time tasks thanks to its two processors. For example, it can execute Arduino-compiled and MicroPython code at the same time, and have the two cores communicate with one another.
- STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU
- 2.95μA current consumption in standby mode (backup SRAM OFF, RTC/LSE ON)
- 22x timers and watchdogs, 4x UART ports (2 with flow control)
- 10/100Mbps Ethernet (through expansion port only)
- Two 80 pin connectors will expose all of the module's peripherals to other devices
- 3 xADCs with 16-bit max. resolution (up to 36 channels, up to 3.6MSPS), 2 x 12-bit DAC (1MHz)
기술 사양
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| No. of Bits | 32bit |
| Core Sub-Architecture | Cortex-M4F, Cortex-M7F |
| Kit Contents | Portenta H7 Dev Board STM32H747XI |
| SVHC | No SVHC (27-Jun-2024) |
| Silicon Family Name | STM32 |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | STM32H747XI |
| Product Range | - |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Italy 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .036 |
