ABX00046
SBC, Arduino Portenta H7 Lite Connected, STM32H747XI, 32bit, ARM Cortex-M7, 8MB RAM, 16MB Flash

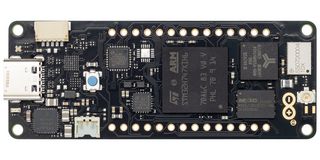

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

| 제조업체 | ARDUINO |
|---|---|
| 제조업체 부품 번호 | ABX00046복사 |
| 제조업체 표준 리드 타임 | 5주 |
| 주문 코드 | 3874816 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
14 재고
더 필요하세요?
14 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩83,074 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩83,074
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | ARDUINO |
|---|---|
| 제조업체 부품 번호 | ABX00046복사 |
| 제조업체 표준 리드 타임 | 5주 |
| 주문 코드 | 3874816 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Family Name | STM32 |
| No. of Bits | 32bit |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4F, Cortex-M7F |
| Silicon Core Number | STM32H747XI |
| Kit Contents | Portenta H7 Dev Board STM32H747XI |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
제품 개요
Portenta H7 Lite connected dev board is designed to provide the computational power of the Portenta H7 for AI applications and low-latency control solutions, with a module that is made more cost-effective by removing the high-resolution video interface feature. It fills the gap between the full H7 and the H7 Lite versions by integrating wireless connectivity, adding yet another option for Arduino Pro clients to build the perfect solution with the right combination of performance and simplicity.
- STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU
- Ethernet, Wi-Fi, BLE connectivity
- 2.95μA current consumption in standby mode (Backup SRAM OFF, RTC/LSE ON)
- 22x timers and watchdogs, 4x UART ports (2 with flow control)
- 10/100Mbps Ethernet (through expansion port only)
- Two 80 pin connectors will expose all of the module's peripherals to other devices
- 3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS), 2× 12-bit DAC (1 MHz)
기술 사양
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| No. of Bits | 32bit |
| Core Sub-Architecture | Cortex-M4F, Cortex-M7F |
| Kit Contents | Portenta H7 Dev Board STM32H747XI |
| SVHC | No SVHC (27-Jun-2024) |
| Silicon Family Name | STM32 |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | STM32H747XI |
| Product Range | - |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Italy 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .036 |
