| 제조업체 | ARDUINO |
|---|---|
| 제조업체 부품 번호 | ABX00049복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 3994324 |
| Product Range | Arduino Portenta |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
주문 가능
입고 시 알림 요청
| 수량 | 가격 |
|---|---|
| 1+ | ₩150,669 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩150,669
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | ARDUINO |
|---|---|
| 제조업체 부품 번호 | ABX00049복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 3994324 |
| Product Range | Arduino Portenta |
| 기술 데이터 시트 | |
| Silicon Manufacturer | Rohm Semiconductor |
| Silicon Family Name | i.MX8M |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-A53, Cortex-M4, Cortex-M7 |
| Silicon Core Number | BD71847AMWV |
| Kit Contents | Portenta X8 Board BD71847AMWV |
| Product Range | Arduino Portenta |
| SVHC | No SVHC (27-Jun-2024) |
제품 개요

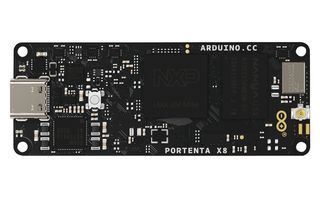

The Portenta X8 is a powerful, industrial-grade SOM that combines Arduino real-time capabilities with high performance processing via the preloaded Linux OS. The compact form factor houses a total of 9 cores for impressive capabilities within a single module. Onboard WiFi and Bluetooth connectivity allows you to securely perform OTA system and application updates. Leverage popular programming languages to deploy powerful AI algorithms and machine learning on the edge.
- Portenta X8 makes use of two phsical ARM-based processing units
- NXP i.MX 8M Mini processor (Cortex-A53 quad core, up to 1.8GHz per core & Cortex-M4 up to 400MHz
- STM32H747XI microcontroller (Cortex M7 up to 480MHz with FPU & Cortex M4 up to 240MHz with FPU)
- 2GB Low power DDR4 RAM and 16GB Forsee eMMC flash module
- Open-source Linux microPlatform OS
- Supports popular programming languages including Python, Java and Ruby
- Murata 1DX WiFi (802.11b/g/n) & Bluetooth (v5.1 BR/EDR/BLE) module
- NXP SE050C2 Hardware security chip provides onboard Crypto capabilities and secure storage
- Comprehensive connectivity via high density connectors including 3x I2C, 4x PWM, 7x GPIO and 8x ADC inputs
- Gigabit Ethernet controller with EEE support (requires physical connector to complete interface)
- Real time clock (RTC) with very low power consumption
- Multiple connectivity options via USB-C
- Compatible with other Arduino Portenta products
기술 사양
| Silicon Manufacturer | Rohm Semiconductor |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | BD71847AMWV |
| Product Range | Arduino Portenta |
| Silicon Family Name | i.MX8M |
|---|---|
| Core Sub-Architecture | Cortex-A53, Cortex-M4, Cortex-M7 |
| Kit Contents | Portenta X8 Board BD71847AMWV |
| SVHC | No SVHC (27-Jun-2024) |
기술 문서 (2)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Italy 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84715000 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .037 |
