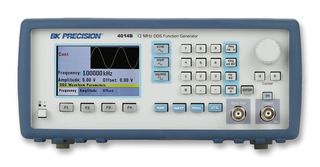

BK4014B

Model 4014B is a 12 MHz DDS (direct digital synthesis) function generator that generates stable and precise sine, square, and triangle waveforms. It provides variable output voltages from 0 to 10 Vpp into 50Ω (up to 20 Vpp into open circuit), linear and logarithmic sweep, AM/FM modulation, built-in counter, and a continuously variable DC offset that allows the output to be injected directly into circuits at the correct bias level. Separate output amplitude and DC offset amplifiers let you set a large DC offset (e.g. ± 4.99 V ) with a small amplitude output signal (e.g. 10 mV), a feature typically found in more expensive generators.

• Triangle/ramp waveforms up to 1 MHz
• Bright colour display with waveform preview
• Linear and logarithmic sweep
• AM/FM modulation
• Independent output and DC offset amplifiers allow for small amplitude output signals
• Low-jitter square wave generation
• Adjustable duty cycle
• Output ON/OFF button
• Internal/external triggering
• Built-in counter
• USB interface
• SCPI-compliant command set
• Short circuit and overvoltage protection on all inputs and outputs
• 3 Year manufacturer warranty

애플리케이션

Test & Measurement, Maintenance & Repair, System Monitoring

목차

Instruction manual on CD, power cord, USB (type A to B) interface cable, certificate of calibration

메모

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
