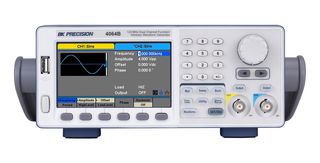

BK4064B

• 4060B series dual channel function/arbitrary waveform generator
• 16bit resolution, 8Mpts, 300MSa/s (DDS), 75MSa/s (true point-by-point) arbitrary waveform generator
• Up to 1.2GSa/s sample rate for sine, square, triangle and pulse waveforms
• Two independent channels with one-button phase synchronization
• Channel copy, track and waveform combine functions
• Generate sine waves up to 120MHz, linear sweep, logarithmic sweep and burst functions
• Precise pulse width and rise/fall time adjustments, AM/DSB-AM/FM//PM/PSK/FSK/ASK/PWM modulation
• 196 built-in predefined arbitrary waveforms, store/recall up to 10 instrument settings
• LAN and USB device port
• GPIB connectivity, front-panel USB host port

목차

Dual channel function/arbitrary waveform generator, AC power cord, User manual (downloadable), USB type A-to-B cable, BNC coaxial cable, certificate of calibration.
