제품 정보
제조업체B&K PRECISION
제조업체 부품 번호DM303
주문 코드4680982
Product RangeDAQ3120 Series
기술 데이터 시트
Accessory Type40-Channel Single-Ended Multiplexer Module
For Use WithB&K Precision DAQ3120 Series Data Acquisition Systems
Product RangeDAQ3120 Series
SVHCNo SVHC (21-Jan-2025)
제품 개요

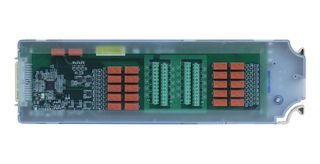

DM303 40-CH single-ended multiplexer is the highest density module with 40 single-wire inputs using armature relays for achieving scanning speeds up to 80 channels per second. All inputs connect to a common signal ground, making it suitable for applications in battery testing, component characterization, and benchtop testing. The common signal ground line is isolated from ground and can be floated up to 300 V. This module also supports 2-wire internal measurements except current.
- Scanning speed up to 80 channels per second
- Single-wire switching for common low applications
- Supports 2-wire measurement (except current)
- Channel-to-ground isolation
- Single-wire armature switching
- 10MHz bandwidth
- 80ch/s speed, 300V maximum voltage
기술 사양
Accessory Type
40-Channel Single-Ended Multiplexer Module
Product Range
DAQ3120 Series
For Use With
B&K Precision DAQ3120 Series Data Acquisition Systems
SVHC
No SVHC (21-Jan-2025)
기술 문서 (1)
관련 제품
7개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:90303370
US ECCN:3A992.a
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:추후 공고함
SVHC:No SVHC (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):1.8
