제품 정보
제조업체B&K PRECISION
제조업체 부품 번호DM304
주문 코드4680983
Product RangeDAQ3120 Series
기술 데이터 시트
Accessory Type4 x 8 Two-Wire Matrix Switch Module
For Use WithB&K Precision DAQ3120 Series Data Acquisition Systems
Product RangeDAQ3120 Series
SVHCNo SVHC (21-Jan-2025)
제품 개요

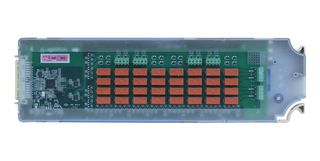

DM304 4 x 8 matrix is a dedicated switch module providing up to 32 cross-points in a 4 row by 8 column matrix. This module allows different test equipment to connect to multiple points on the device under test (DUT) at the same time. Additional DM304 modules can be wired together to expand the number of rows or columns, reaching up to 96 cross-points.
- 32 2-wire cross-points
- 3ms switching speed
- 300 V and 1A maximum
- Expandable to 96 cross-points
- 2-wire armature switching
- 10MHz bandwidth
- 300V maximum voltage
기술 사양
Accessory Type
4 x 8 Two-Wire Matrix Switch Module
Product Range
DAQ3120 Series
For Use With
B&K Precision DAQ3120 Series Data Acquisition Systems
SVHC
No SVHC (21-Jan-2025)
기술 문서 (1)
관련 제품
7개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:90303370
US ECCN:3A992.a
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:추후 공고함
SVHC:No SVHC (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):1.8
