제품 정보
제조업체B&K PRECISION
제조업체 부품 번호DM309
주문 코드4680985
Product RangeDAQ3120 Series
기술 데이터 시트
Accessory Type8-Channel High Voltage Multiplexer Module with 2 Current Channel
For Use WithB&K Precision DAQ3120 Series Data Acquisition Systems
Product RangeDAQ3120 Series
SVHCNo SVHC (21-Jan-2025)
제품 개요

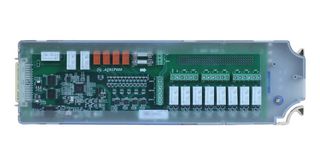

DM309 8-CH high voltage multiplexer with 2 current channels increases the maximum measurable voltage from 300 to 600V DC or 400Vrms. The 2 additional current channels handle DC and AC measurements up to 2A without the need of external shunts. For added protection, each current channel connects to a fuse conveniently located within the module. This module supports thermocouple measurements as well, provided there is an external cold junction reference available.
- Scanning speed up to 60 channels per second
- 600V DC or 400Vrms maximum input
- 2-wire and 4-wire measurements
- 2 extra channels for current measurements up to 2A each
- 2-wire armature switching
- 10MHz bandwidth
- 60ch/s speed, 600V DC/400Vrms maximum voltage
- 2A current rating
기술 사양
Accessory Type
8-Channel High Voltage Multiplexer Module with 2 Current Channel
Product Range
DAQ3120 Series
For Use With
B&K Precision DAQ3120 Series Data Acquisition Systems
SVHC
No SVHC (21-Jan-2025)
기술 문서 (1)
관련 제품
7개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:90303370
US ECCN:3A992.a
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:추후 공고함
SVHC:No SVHC (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):1.8
