주문 가능
제조업체 표준 리드 타임: 6주
입고 시 알림 요청
수량 | 가격 |
---|---|
1+ | ₩82,344 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩82,344
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체BAHCO
제조업체 부품 번호9031T
주문 코드4468775
Product RangeERGO Series
기술 데이터 시트
Length218mm
Jaw Opening Max38mm
Product RangeERGO Series
SVHCNo SVHC (23-Jan-2024)
제품 개요

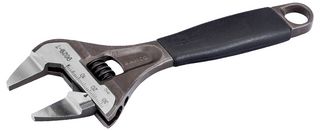

9031T is an ERGO™ central nut wide opening thin jaw adjustable wrench with rubber handle. Its ergonomically designed thermoplastic elastomer handle distributes pressure uniformly in the hand, reducing the risk for work related injuries. It features extra-wide jaw opening with a shorter handle than a standard wrench offers accessibility to work in confined spaces.
- Adjustable wrench developed according to the scientific ERGO™ process
- Up to 60% thinner jaws than standard wrenches of the same size give greater access in tight spaces
- 40% wider opening compared to a standard adjustable wrench, 218mm length
- Jaw will not fall out even at maximum opening of the wrench, 38mm max jaw opening
- Laser scale in mm for pre-adjusting and accurate measurement
- Skydrol- and oil-resistant rubber handle, high-performance alloy steel forged in single piece
- Phosphate finish, precision-hardened and anti-corrosion treated
- Left turning screw
- Standards: ISO 6787, DIN 3117, ASME B107.8 and BS 6333
기술 사양
Length
218mm
Product Range
ERGO Series
Jaw Opening Max
38mm
SVHC
No SVHC (23-Jan-2024)
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Spain
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Spain
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:82042000
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:해당 없음
RoHS 프탈레이트 준수:해당 없음
SVHC:No SVHC (23-Jan-2024)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.058
