제품 정보
제조업체BEHA-AMPROBE
제조업체 부품 번호AC50A
주문 코드1466482
기술 데이터 시트
DMM FunctionsAC Current, AC Voltage, Resistance
Current Measure AC Max60A
Voltage Measure AC Max400V
Voltage Measure DC Max-
Resistance Measure Max400ohm
DMM Response TypeAverage
Range SelectionManual
No. of Digits3.75
Jaw Opening Max30mm
Product Range-
SVHCNo SVHC (15-Jun-2015)
제품 개요

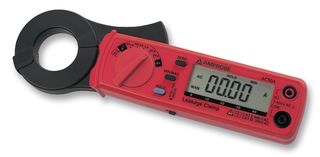

Current clamp multimeter for measuring low AC current in the microamps. Great for applications requiring measurement of leakage and fault currents.
- AC current measurement to 60A
- Leakage current measurement with resolution of 0.01mA
- AC voltage to 400V
- Resistance measurement and continuity beeper
- Min/Max control to see largest or smallest values in a series of measurements
- Relative value measurement to determine differentials
- Data Hold to freeze measurement value on the display
- Digital display with Analogue bargraph
- Jaw opening 30 mm (1.2 in)
- Minimum Resolution 0.01mA
애플리케이션
Industrial, Maintenance & Repair, Test & Measurement
목차
Batteries, carrying case, test leads and user manual
메모
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
기술 사양
DMM Functions
AC Current, AC Voltage, Resistance
Voltage Measure AC Max
400V
Resistance Measure Max
400ohm
Range Selection
Manual
Jaw Opening Max
30mm
SVHC
No SVHC (15-Jun-2015)
Current Measure AC Max
60A
Voltage Measure DC Max
-
DMM Response Type
Average
No. of Digits
3.75
Product Range
-
기술 문서 (1)
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:90303100
US ECCN:3A992.a
EU ECCN:NLR
RoHS 준수:추후 공고함
RoHS 프탈레이트 준수:추후 공고함
SVHC:No SVHC (15-Jun-2015)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.3
