페이지 인쇄
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
649 재고
더 필요하세요?
30 1-2 영업일 이내 배송(싱가폴 재고)
619 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩19,263 |
50+ | ₩18,859 |
100+ | ₩18,296 |
250+ | ₩17,745 |
500+ | ₩17,216 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩19,263
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체BINDER
제조업체 부품 번호99 0409 00 04
주문 코드1122552
Product Range712 Series
기술 데이터 시트
Connector TypeCircular Industrial
Product Range712 Series
Circular Connector Shell StyleCable Mount Plug
No. of Contacts4Contacts
Circular Contact TypeSolder Pin
Coupling Style-
Connector Body MaterialNylon (Polyamide) Body
Connector Body Plating-
Contact MaterialBrass
Contact PlatingGold
제품 개요

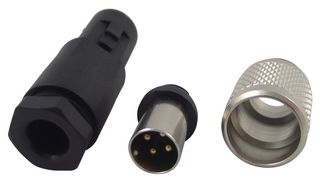

The 99 0409 00 04 is a 4-contact 125V/3A unshielded straight subminiature male Circular Connector with gold-plated brass contacts, PBT (UL94V-0) contact body and PA (UL94VH-B) housing. The 712 series plug with M9 screw locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3.5 to 5mm cable outlet.
- 1500V Rated impulse voltage
- ≤3mΩ Volume resistivity
- <gt/>500 mating cycles Mechanical operation
- IP67 Protection rating
애플리케이션
Industrial
기술 사양
Connector Type
Circular Industrial
Circular Connector Shell Style
Cable Mount Plug
Circular Contact Type
Solder Pin
Connector Body Material
Nylon (Polyamide) Body
Contact Material
Brass
Product Range
712 Series
No. of Contacts
4Contacts
Coupling Style
-
Connector Body Plating
-
Contact Plating
Gold
기술 문서 (2)
관련 제품
5개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.009
