페이지 인쇄

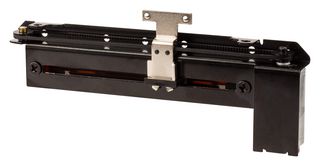

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
14 재고
120 지금 제품을 예약하실 수 있습니다
14 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩57,958 |
5+ | ₩51,792 |
10+ | ₩45,805 |
20+ | ₩42,866 |
40+ | ₩40,957 |
60+ | ₩38,608 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩57,958
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체BOURNS
제조업체 부품 번호PSM60-082A-103B2
주문 코드2530215
Product RangePSM Series
기술 데이터 시트
Slide Potentiometer TypeMotorized
Track Resistance10kohm
Resistance Tolerance± 20%
Power Rating500mW
Track TaperLinear
Potentiometer MountingThrough Hole
Length of Travel60mm
Lever Length8.2mm
Resistor TechnologyCarbon
Potentiometer TerminalsSnap-in
Product RangePSM Series
Product Length112mm
Product Width13mm
Product Height35mm
Operating Temperature Min-10°C
Operating Temperature Max55°C
SVHCLead (21-Jan-2025)
제품 개요
PSM60-082A-103B2 is a PSM series motorized slide potentiometer. Application includes audio mixing consoles, broadcast mixing consoles.
- Long life carbon element, assortment of resistance tapers
- 2.36inch travel lengths, touch sense lever, motorized slide potentiometer
- 8.2mm lever length, snap-in connector terminal type, metal lever level end style
- 250VAC dielectric withstanding voltage
- 10Kohm track resistance
- 100,000 cycles operational life, ±15% TR shift, ±5% resistance to solder heat
- 1Kohms to 1megohm standard resistance range, ±20% standard resistance tolerance
- 10VDC rated voltage, 6 to 11VDC operating voltage supply range, 800mA maximum starting current
- Linear, audio standard taper, lever speed at 10VDC is .20mm/0.1sec
- Operating temperature range from -10°C to +55°C
기술 사양
Slide Potentiometer Type
Motorized
Resistance Tolerance
± 20%
Track Taper
Linear
Length of Travel
60mm
Resistor Technology
Carbon
Product Range
PSM Series
Product Width
13mm
Operating Temperature Min
-10°C
SVHC
Lead (21-Jan-2025)
Track Resistance
10kohm
Power Rating
500mW
Potentiometer Mounting
Through Hole
Lever Length
8.2mm
Potentiometer Terminals
Snap-in
Product Length
112mm
Product Height
35mm
Operating Temperature Max
55°C
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85334010
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:Y-Ex
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:Lead (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.060101
