제품 정보
제조업체BULGIN LIMITED
제조업체 부품 번호PX0447
주문 코드1229687
기술 데이터 시트
USB Connector TypeMini USB Type B
USB StandardUSB 2.0
GenderReceptacle(관련 커넥터 보기)
No. of Positions5 Position
Connector MountingThrough Hole Mount
IP RatingIP68, IP69K
Product Range-
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCNo SVHC (27-Jun-2024)
제품 개요

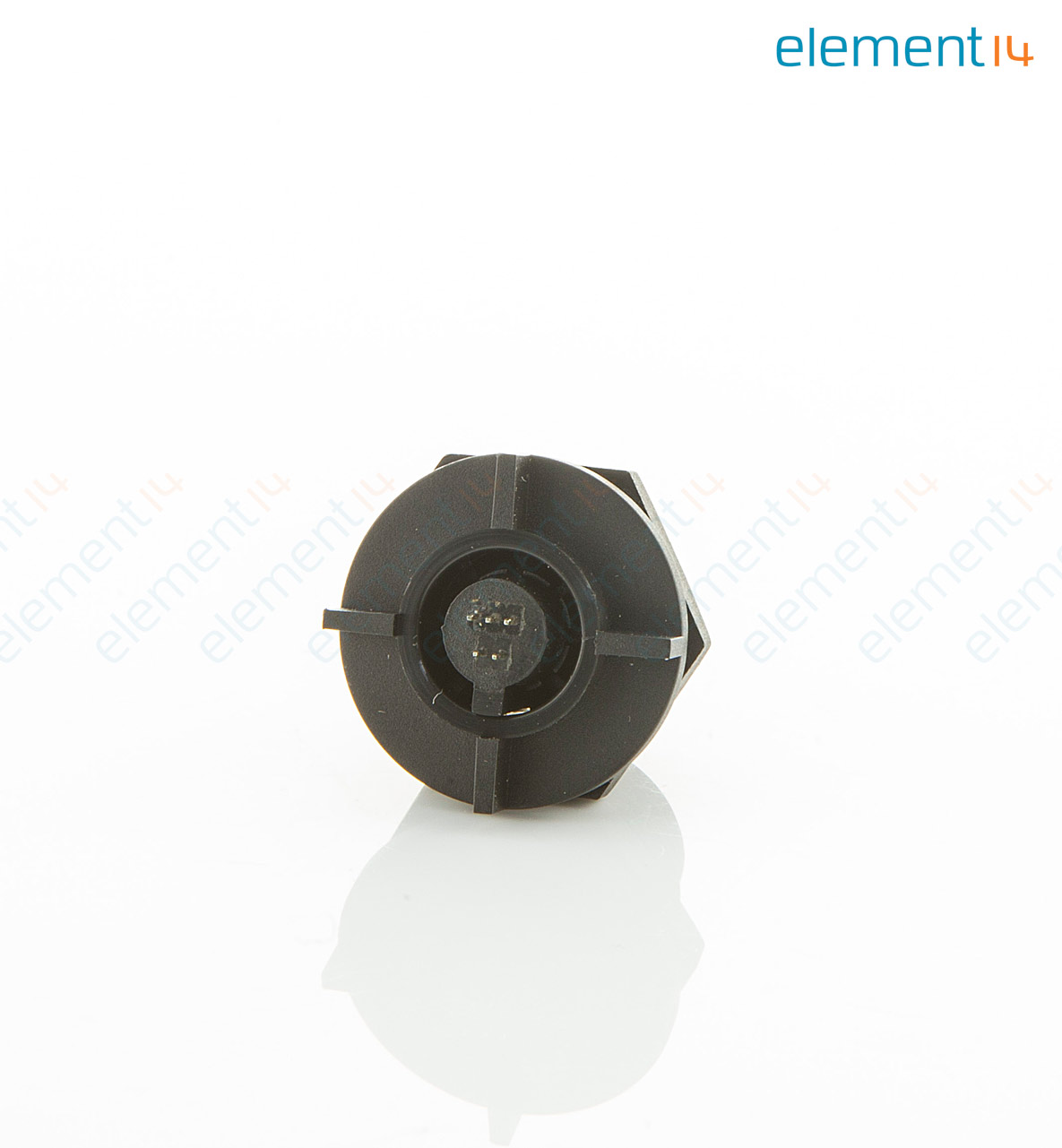

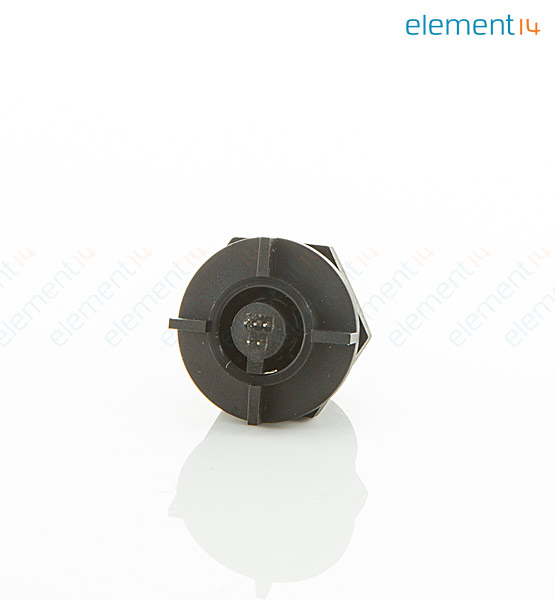

The PX0447 from Bulgin is a sealed, IP68 & IP69K rated mini USB 2.0 type B socket with pins for direct PC mounting. Mates with PX0441 & PX0442 type cables.
- Plug and play capability
- Dust and waterproof to EN60529
- Dust and waterproof to DIN 40050-9
- Hot pluggable, standard 4 pole interface
- Secure, proven locking system
- High noise immunity
- Current rating is 1A
- Voltage rating is 30VAC, 42VDC
- Operating temperature range from 0°C to 70°C
- Copper alloy with gold plated contacts
애플리케이션
Industrial, Portable Devices, Communications & Networking
기술 사양
USB Connector Type
Mini USB Type B
Gender
Receptacle
Connector Mounting
Through Hole Mount
Product Range
-
Contact Plating
Gold Plated Contacts
USB Standard
USB 2.0
No. of Positions
5 Position
IP Rating
IP68, IP69K
Contact Material
Copper Alloy
SVHC
No SVHC (27-Jun-2024)
관련 제품
5개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (27-Jun-2024)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.006368
