제품 정보
제조업체 부품 번호6860-201-22278
주문 코드1019250
Product RangeCommon Contact System
기술 데이터 시트
Product RangeCommon Contact System
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max22AWG
Wire Size AWG Min26AWG
For Use WithDeutsch IMC Series Circular Industrial Micro Connectors
Contact PlatingGold Plated Contacts
Contact MaterialCopper Alloy
SVHCLead (15-Jan-2019)
제품 개요

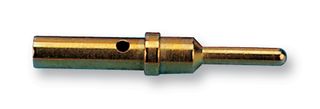

The 6860-201-22278 is a Crimp Contact for use with IMC series circular industrial micro connectors, pin type, 26 to 22AWG wire. Gold-plated copper alloy for high reliability, extended life and superior conductivity. Closed entry sockets for proper alignment and resistance to probe damage.
- 5A Current rating
- 750VAC (RMS) Voltage rating
- Insertable and removable for easy assembly and maintenance
- 2.3mm Engagement for electrical circuit integrity
애플리케이션
Industrial
기술 사양
Product Range
Common Contact System
Contact Termination Type
Crimp
Wire Size AWG Min
26AWG
Contact Plating
Gold Plated Contacts
SVHC
Lead (15-Jan-2019)
Contact Gender
Pin
Wire Size AWG Max
22AWG
For Use With
Deutsch IMC Series Circular Industrial Micro Connectors
Contact Material
Copper Alloy
기술 문서 (1)
관련 제품
2개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Switzerland
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Switzerland
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:Lead (15-Jan-2019)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.000096
