| 제조업체 | DFROBOT |
|---|---|
| 제조업체 부품 번호 | DFR0300-H복사 |
| 제조업체 표준 리드 타임 | 16주 |
| 주문 코드 | 3769919 |
| Product Range | TUK SGACK902S Keystone Coupler |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
10 지금 제품을 예약하실 수 있습니다
| 수량 | 가격 |
|---|---|
| 1+ | ₩110,328 |
제품 정보
| 제조업체 | DFROBOT |
|---|---|
| 제조업체 부품 번호 | DFR0300-H복사 |
| 제조업체 표준 리드 타임 | 16주 |
| 주문 코드 | 3769919 |
| Product Range | TUK SGACK902S Keystone Coupler |
| 기술 데이터 시트 | |
| Silicon Manufacturer | - |
| Silicon Family Name | - |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | - |
| Kit Contents | Electrical Conductivity Probe, Signal Conv Board, 4x Std Buffer Solution 12.88ms/cm and Accessories |
| For Use With | Arduino and Raspberry Pi Boards |
| Product Range | TUK SGACK902S Keystone Coupler |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

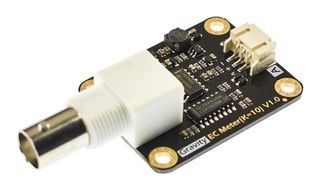

Analog electrical conductivity sensor / meter(K=10) is specially used to measure the high electrical conductivity liquid, such as seawater, concentrated brine, etc. The measurement range is up to 100ms/cm. This product is suitable for the water quality application of mariculture, for example, marine fisheries, marine aquariums. It supports 3~5v wide voltage input, and is compatible with 5V and 3.3V main control board; The excitation source adopts AC signal, which effectively reduces the polarization effect, improves the precision and prolongs the life of the probe; The software library uses single-point calibration method, and can automatically identify standard buffer solution, so simple and convenient.
- Output voltage: 0V to 3.2V
- AC excitation source, effectively reduce polarization
- Gravity connector and BNC connector, plug and play, no welding
- Uniform size and connector, convenient for the design of mechanical structures
목차
Electrical conductivity probe (K=10, laboratory grade) x1, Signal conversion board x 1, Standard buffer solution 12.88ms/cm x 4, Gravity analogue sensor cable x 1, Waterproof gasket x 2, Screw cap for BNC connector x 1, M3 * 10 nylon pillar x 4, M3 * 5 screw x 8.
기술 사양
| Silicon Manufacturer | - |
|---|---|
| Core Architecture | - |
| Silicon Core Number | - |
| For Use With | Arduino and Raspberry Pi Boards |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Family Name | - |
|---|---|
| Core Sub-Architecture | - |
| Kit Contents | Electrical Conductivity Probe, Signal Conv Board, 4x Std Buffer Solution 12.88ms/cm and Accessories |
| Product Range | TUK SGACK902S Keystone Coupler |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 90278990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .32 |
