FIT0729
USB Camera, Microphone, 8 Megapixels, Raspberry Pi and Jetson Nano Mainboard, Sony Imx179, CMOS

| 제조업체 | DFROBOT |
|---|---|
| 제조업체 부품 번호 | FIT0729복사 |
| 제조업체 표준 리드 타임 | 10주 |
| 주문 코드 | 3769901 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩61,652 |
제품 정보
| 제조업체 | DFROBOT |
|---|---|
| 제조업체 부품 번호 | FIT0729복사 |
| 제조업체 표준 리드 타임 | 10주 |
| 주문 코드 | 3769901 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | Sony |
| Add-On-Card & Module Type | - |
| For Use With | Raspberry Pi and Jetson Nano mainboard |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | IMX179 |
| Silicon Family Name | - |
| Kit Contents | 8000K Pixel USB Camera(With Microphone) x1 Board |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

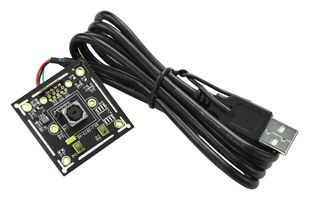

8 Megapixels USB Camera with Microphone is an 8000K pixels driver-free camera of USB port with up to 3264*2448 resolution. Based on the Sony IMX179 CMOS sensor, it supports autofocus, plug, and play, offering HD photos and video. Compatible with multiple systems like Windows, iOS, Android, and Linux, this camera module comes with a digital microphone that captures the sound of 5 meters around the camera when recording video. The design of the USB port also makes it easier to use with your Raspberry Pi and Jetson Nano mainboard when they are placed in a protective case. With a small size of 38mm*38mm, the camera can be embedded into various devices, and perfect for high-quality video system, biometrics recognition, industrial photography, HD monitoring, etc.
- Operating voltage of 5VDC
- Operating current of 160mA to 260mA
- Operating temperature range from -10 to 70℃
- Dimension is 38 x 38mm/1.50 x 1.50”
기술 사양
| Silicon Manufacturer | Sony |
|---|---|
| For Use With | Raspberry Pi and Jetson Nano mainboard |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| SVHC | No SVHC (04-Feb-2026) |
| Add-On-Card & Module Type | - |
|---|---|
| Core Architecture | - |
| Silicon Core Number | IMX179 |
| Kit Contents | 8000K Pixel USB Camera(With Microphone) x1 Board |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .039 |
