| 제조업체 | DFROBOT |
|---|---|
| 제조업체 부품 번호 | SEN0429복사 |
| 제조업체 표준 리드 타임 | 19주 |
| 주문 코드 | 3974150 |
| Product Range | Fermion Series |
| AKA | GTIN UPC EAN: 6959420921041 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩17,951 |
제품 정보
| 제조업체 | DFROBOT |
|---|---|
| 제조업체 부품 번호 | SEN0429복사 |
| 제조업체 표준 리드 타임 | 19주 |
| 주문 코드 | 3974150 |
| Product Range | Fermion Series |
| AKA | GTIN UPC EAN: 6959420921041 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | AMS |
| Silicon Family Name | - |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | TMF8701 |
| Kit Contents | Time-of-Flight Distance Ranging Sensor TMF8701, 8P Black Single-Row Connector |
| For Use With | Arduino UNO v3.0[R3] Board |
| Product Range | Fermion Series |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요
SEN0429 is a Fermion: TMF8701 ToF distance ranging sensor (10-600mm) (breakout). The TMF8701 is a time-of-flight distance ranging sensor that uses the time difference between light pulses to measure distance. It provides single zone detection of an object irrespective of the colour, reflectivity and texture of the object. The TMF8701 offers high dynamic range and operates in either a proximity mode (1-10cm) or a ranging mode (10-60cm) for detection sensing. And the device can make highly accurate distance measurements within ±5% and is capable of operation in dark environments and in the presence of sunlight. A built-in histogram is featured to delivers dynamic cover glass calibration and crosstalk compensation and background light noise is minimized through on-chip sunlight rejection filters. TMF8701 outputs data through a I2C fast-mode communications interface and an integrated micro controller, which is featured with all algorithms included on-chip with no need for external optics.
- 21⁰ FOI, detect the object closest to the centre
- 940nm VCSEL class 1 eye safety
- Low power consumption
- Operating voltage is 2.7~3.3V
- Dimension is 21×14.5mm
목차

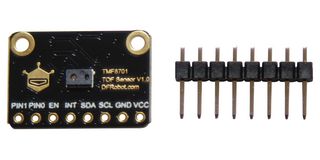

Fermion: TMF8701 ToF distance ranging sensor (10-600mm) x1, 2.54-8P black single-row connector x1.
기술 사양
| Silicon Manufacturer | AMS |
|---|---|
| Core Architecture | - |
| Silicon Core Number | TMF8701 |
| For Use With | Arduino UNO v3.0[R3] Board |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Family Name | - |
|---|---|
| Core Sub-Architecture | - |
| Kit Contents | Time-of-Flight Distance Ranging Sensor TMF8701, 8P Black Single-Row Connector |
| Product Range | Fermion Series |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85414900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .007 |
