6069-410-033

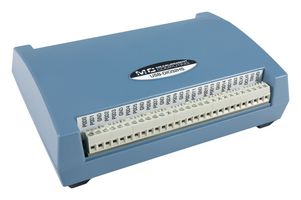

USB-DIO32HS is a high-speed synchronous digital I/O USB device and features 32 channels, up to 8 MS/s update rate, independent input and output scan clocks, and digital and pattern triggering. The 32 DIO bits are available as two 16-bit ports that are bit-configurable for input or output. Each port is configured independently, so both software polling and hardware scanning operations can be performed at the same time.

• 32 bits of bidirectional TTL digital I/O
• Pattern detection and generation
• Input scan rate up to 8MS/s, output update rate of up to 8MS/s
• 24mA source, 10mA sink output current
• External trigger input
• Screw terminals for field wiring connections
• Powered by the +5VUSB supply
• Supported Windows® 11/10/8/7/Vista®/XP, 32/64-bit, Linux®, Android™ OS

목차

USB-DIO32HS, USB cable, Printed insert: DAQami quick start, MCC packaging assembly/foam, etc.

메모

In addition, we have calibration services for this product (Europe only). Visit our calibration service page to see details of what options are available.
