| 제조업체 | DWYER |
|---|---|
| 제조업체 부품 번호 | 166T복사 |
| 제조업체 표준 리드 타임 | 8주 |
| 주문 코드 | 4287792 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩707,641 |
제품 정보
| 제조업체 | DWYER |
|---|---|
| 제조업체 부품 번호 | 166T복사 |
| 제조업체 표준 리드 타임 | 8주 |
| 주문 코드 | 4287792 |
| 기술 데이터 시트 | |
| Diameter | - |
| Insertion Length | 914.4mm |
| Body Material | Stainless Steel |
| For Use With | Differential Pressure Gauges, Switches, Transmitters |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

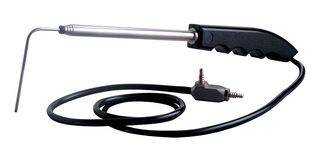

166T is a telescoping stainless steel pitot tube. It is a unique air flow sensor which can quickly and easily be adjusted for any duct insertion length from 11.5 to 36 inches (29.2 to 91.4 cm), allowing it to replace up to 5 conventional fixed length Pitot tubes. The telescoping sections lock in place as they are extended, which enables the use of the handheld grip to gauge proper alignment of the tip with the airstream. For even greater convenience, it is securely protected by a custom fitted telescoping stainless steel pitot tube. It monitors or controlsair velocity or air flow when combined with differential pressure gage, switch, or transmitter where varying lengths are needed.
- Stainless steel construction resists corrosion
- 1.8˝ diameter hemispherical tip has 1.0 flow coefficient
목차
Telescoping stainless steel pitot tube, Carrying case.
기술 사양
| Diameter | - |
|---|---|
| Body Material | Stainless Steel |
| Product Range | - |
| Insertion Length | 914.4mm |
|---|---|
| For Use With | Differential Pressure Gauges, Switches, Transmitters |
| SVHC | No SVHC (04-Feb-2026) |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | United States 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 90269000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .680389 |
