09-0A72.3132

09-0A72.3132 is a 12V 09 series rugged CAN keypad design-in kit. Designed for E1 applications with functional safety and CAN bus integration. The robust control units with flexible illumination are ideally suited for use in heavy duty and special vehicle applications.

• Hardwired BASIC keypad with screw-in termination
• IP67 rated and CAN bus integration
• Electromechanical switching element
• Symbols in accordance with ISO 7000 standard
• Clip-in mounting
• Halo ring and symbol illumination can be configured independently
• Operating temperature range from -40 to +85°C

목차

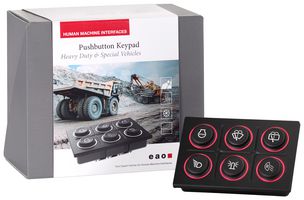

1 x keypad, 6 x retaining clip for 2mm panel, 12 x rubber washer, 4 x DIN9021 stainless A2 washer, 4 x nut, 1 x coupler, 10 x symbol insert, 1 x power supply, 1 x plug adapter, 1 x adapter cable keypad, 1 x mounting frame aluminium 2mm, 1 x insert tool.
