FLUKE BC190/830

FLUKE BC190/830 is a universal mains-power adapter. It is intended for operating and charging the Fluke 190-series ScopeMeter Test Tool (test tool). The adapter is based on the switched mode concept for high efficiency, low stand-by power consumption and complies with level-VI requirements. It operates in a wide range of input voltages from 100V AC up to 240V AC nominal. A universal set of mains cords is included to make the adapter suitable for most types of mains outlet.

• Input current is 0.35A at maximum load
• IEC 60320-1 type C8 mains inlet
• Input power no load is less than 0.1W (at 115 / 230V AC)
• Output voltage is 18V DC ±5%
• Output current range from 0mA to 840mA
• Output cable length is 2m (6.5ft)
• IEC 61010-1, IEC 61010-2-030: CAT IV 600V, pollution degree 2 safety standards
• Operating temperature range from 0°C to 50°C

목차

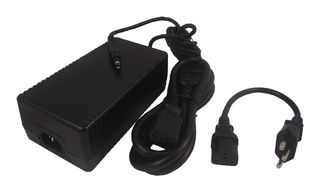

BC190/830 switch mode power adapter (main unit) with DC cable, Universal set of 2-wire mains cords with male and female connector.
