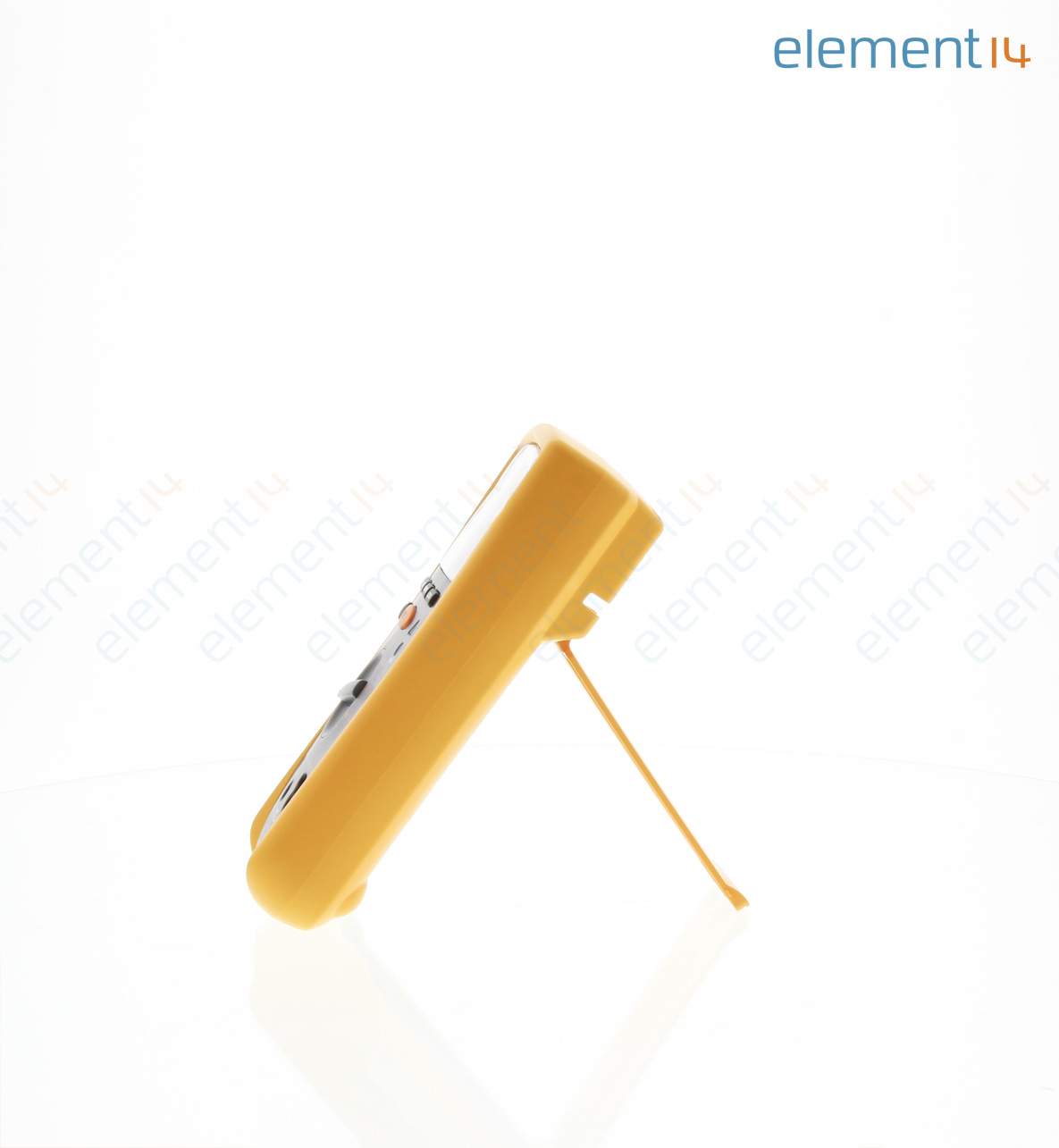

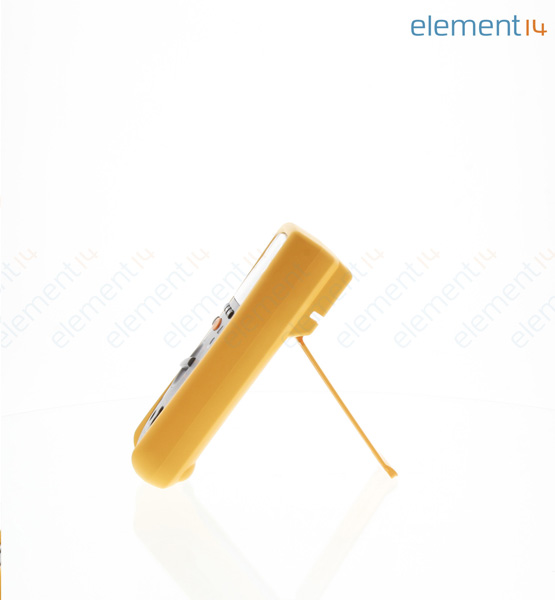

FLUKE 1507

FLUKE 1507 is an insulation resistance tester. It is a rugged, compact, advanced insulation resistance tester for electrical contractors and industrial and commercial electricians. Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications. Its handy size and light weight make it easy to pack and use. Additional features, like the remote probe, save both time and money, especially when performing repetitive tests. And its reasonable price and rugged reliability make it an excellent value. It complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600V (CAT IV) and CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition certified.

• Includes live circuit detection to prevent insulation test if voltage >30V is detected
• Includes auto-discharge of capacitive voltage for added user protection
• Provides lo-ohms earth-bond continuity (200mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off, presents results on a large, backlit display
• Features CAT IV 600V overvoltage category rating
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
• Operating temperature range from -20°C to 55°C
• Size (H x W x L) is 50mm x 100mm x 203mm
• IP40 IP rating

목차

FLUKE 1507 insulation resistance tester, Remote probe, Test leads, Test probes, Alligator clips, User documentation.
