FLUKE 805

Make go or no-go maintenance decisions with confidence. This vibration meter is a reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition. Applications: Chillers (refrigeration), Fans, Cooling tower drives, Centrifugal pumps, Positive displacement pumps, Air compressors, Blowers, Generic gearboxes (rolling element bearings) and Machine tools (motor, gearboxes, spindles, etc.).

• Measures overall vibration (10-1000Hz) for acceleration, velocity, displacement units of measurement
• Crest Factor+ for reliable bearing assessment using direct sensor tip for 4kHz-20kHz measurement
• Four-level scale indicates severity of problems for overall vibration and bearing condition
• Lighting system (green, red) and on-screen comments indicate how much pressure needs to be applied to take measurements
• Coloured lighting system and on-screen comments indicates required pressure for measurements
• Measures temperature with Spot IR Sensor to increase diagnostic capabilities
• Holds and saves up to 3,500 measurements in on-board memory
• Provides external accelerometer support for hard to reach locations
• Allows you to export data via USB, provides audio output for listening to bearing tones directly
• Features built-in flashlight, provides large high-resolution display for easy navigation and viewing

목차

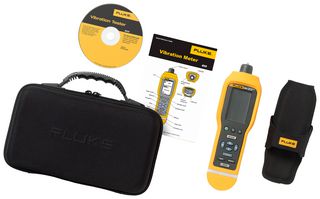

Vibration meter, USB cable, Storage case, Belt holster, Quick reference guide, CD-ROM (includes MS Excel template and documentation) and 2 AA batteries.
