| 제조업체 | FLUKE |
|---|---|
| 제조업체 부품 번호 | FLUKE LVD2복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 1327563 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩123,881 |
제품 정보
| 제조업체 | FLUKE |
|---|---|
| 제조업체 부품 번호 | FLUKE LVD2복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 1327563 |
| 기술 데이터 시트 | |
| Voltage Measuring Range AC | 90V to 600V |
| Meter Display Type | LED |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 50°C |
| Product Range | - |
| Plug Type | - |
| SVHC | No SVHC (15-Jun-2015) |
제품 개요

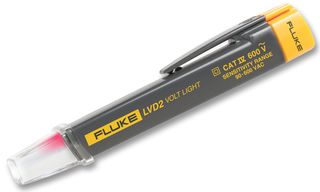

FLUKE LVD2 is a non-contact voltage tester. LVD2 volt light, offered by Fluke, combines a non-contact AC voltage detector and LED flashlight into one easy-to-use pen-style design. It features dual sensitivity detection, turning blue from 1” to 5” (2.54cm to 12.7cm) from the source and red when at the source. The LVD2 is a CAT IV 600V rated and is suitable for commercial and industrial applications.
- Non-contact AC voltage tester and LED flashlight
- Detects from 90 to 600VAC
- Features dual-sensitivity for two levels of detection
- Indicates proximity to AC voltage source with blue light
- Indicates you’re at the source with red light
- Ultra-bright white LED light with 100,000-hour bulb life
- Safety rated to CAT IV 600V
- Operating temperature range 0 deg C to +50 deg C
목차
Non-contact voltage tester, AAA battery.
메모
Get a FREE Fluke tool on spend of £100+ (excl. VAT)in EMEA only, until 31/12/2026 (Discover more: https://www.farnell.com/datasheets/4800832.pdf). Calibration services are available (Europe only). Please visit our calibration services page for more details.
기술 사양
| Voltage Measuring Range AC | 90V to 600V |
|---|---|
| Operating Temperature Min | 0°C |
| Product Range | - |
| SVHC | No SVHC (15-Jun-2015) |
| Meter Display Type | LED |
|---|---|
| Operating Temperature Max | 50°C |
| Plug Type | - |
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Taiwan 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 90303370 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (15-Jun-2015) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .092986 |
