| 제조업체 | FTDI |
|---|---|
| 제조업체 부품 번호 | VNCLO-MB1A복사 |
| 제조업체 표준 리드 타임 | 44주 |
| 주문 코드 | 1848970 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
입고 시 알림 요청
| 수량 | 가격 |
|---|---|
| 1+ | ₩44,564 |
제품 정보
| 제조업체 | FTDI |
|---|---|
| 제조업체 부품 번호 | VNCLO-MB1A복사 |
| 제조업체 표준 리드 타임 | 44주 |
| 주문 코드 | 1848970 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | FTDI |
| No. of Bits | 16bit |
| Silicon Family Name | Vinculum II |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | VNC2 |
| Kit Contents | Eval Board VNC2-64Q |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

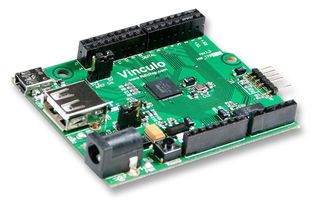

The VNCLO-MB1A is a mother board based on the Vinculum II, VNC2 IC. The VNC2 is the second of Vinculum family of embedded dual USB host controller devices. This board designed as a prototyping platform for VNC2 based designs and applications. The board uses a VNC2-64Q package to facilitate 38 GPIO options on 0.1inch pitch header pins. A 10bit A to D converter has also been added to offer connectivity to analogue inputs. This A to D converter can be read by the VNC2-64Q SPI host interface. For USB connectivity the module includes one USB type A connector and one mini B connector to provide access to the VNC2-64Q USB ports. An additional connector, to mate with the VII debugger/programmer module is provided to connect to the VNC2 IDE (Integrated Development Environment) for creating and debugging application code to run on the Vinco mother board. The debugger/programmer module also allows the Vinco board to be programmed.
- 5V operating voltage
- 30 digital I/O
- 8 analogue I/O
- 256KB flash memory
- 16KB RAM
- Superset of the Arduino Duemilanove/Uno development boards
- Precompiled drivers for a variety of interfaces example USB, UART, SPI
- Compatible with existing Arduino shields
- Precompiled driver support for a wide range of USB device classes
- 9V input power supply
경고
Use of this device in life support and/or safety applications is entirely at the userÆs risk. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
기술 사양
| Silicon Manufacturer | FTDI |
|---|---|
| Silicon Family Name | Vinculum II |
| Core Sub-Architecture | - |
| Kit Contents | Eval Board VNC2-64Q |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Bits | 16bit |
|---|---|
| Core Architecture | - |
| Silicon Core Number | VNC2 |
| Product Range | - |
기술 문서 (1)
관련 제품
3개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85423990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .043001 |
