| 제조업체 | GW INSTEK |
|---|---|
| 제조업체 부품 번호 | GVM-9102복사 |
| 제조업체 표준 리드 타임 | 28주 |
| 주문 코드 | 4691538 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
2 지금 제품을 예약하실 수 있습니다
| 수량 | 가격 |
|---|---|
| 1+ | ₩1,343,877 |
제품 정보
| 제조업체 | GW INSTEK |
|---|---|
| 제조업체 부품 번호 | GVM-9102복사 |
| 제조업체 표준 리드 타임 | 28주 |
| 주문 코드 | 4691538 |
| 기술 데이터 시트 | |
| No. of Digits | 6.5 |
| DMM Connectivity | Digital I/O, LAN, RS232C, USB |
| Current Measure AC Max | - |
| Voltage Measure AC Max | - |
| Resistance Measure Max | - |
| Product Range | - |
| Current Measure DC Max | - |
| Voltage Measure DC Max | 2kV |
| Manufacturer Warranty | 3 Years |
| DMM Functions | DC Voltage |
| Plug Type | - |
| SVHC | No SVHC (21-Jan-2025) |
제품 개요

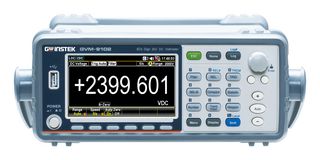

01VM910200GS is a GVM-9102 6 ½ digit 2KV voltmeter, featuring high precision DC voltage accuracy, fast sampling rate, 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O and optional GPIB) to provide comprehensive measurement capabilities, higher speed and accuracy, making it particularly suitable for output measurement of energy storage devices, photovoltaic devices or DC power supply devices. The GVM-9102 provides DC voltage measurement up to 2400 V without the need for attenuators, effectively reducing measurement losses and errors. In addition, the GVM-9012 also features math functions (dB, dBm, comparison, MX+B, 1/X and percentage), statistical functions (min/max/avg/P-P/STDEV) and various standard communication interfaces. Whether operated as a desktop or installed in a system, the GVM-9102 can meet specific measurement requirements and complex measurement applications.
- 6 1/2 digit display: 2,399,999 counts maximum
- 4.3" TFT graphic LCD display
- DC voltage measurement up to 2400V
- DCV basic accuracy of 0.01%
- Fastest sampling rate of 10K readings/sec
- USB storage function available
- Graphic display capability, providing histogram, bar meter and trend chart
- Digital I/O, RS-232C, USB host/device, LAN
기술 사양
| No. of Digits | 6.5 |
|---|---|
| Current Measure AC Max | - |
| Resistance Measure Max | - |
| Current Measure DC Max | - |
| Manufacturer Warranty | 3 Years |
| Plug Type | - |
| DMM Connectivity | Digital I/O, LAN, RS232C, USB |
|---|---|
| Voltage Measure AC Max | - |
| Product Range | - |
| Voltage Measure DC Max | 2kV |
| DMM Functions | DC Voltage |
| SVHC | No SVHC (21-Jan-2025) |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 90318080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 추후 공고함 |
| SVHC: | No SVHC (21-Jan-2025) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | 3.8 |
