페이지 인쇄
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
188 재고
더 필요하세요?
188 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩6,549 |
5+ | ₩6,313 |
10+ | ₩5,184 |
20+ | ₩5,114 |
50+ | ₩5,044 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩6,549
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체HAMMOND
제조업체 부품 번호1591XXMSFLBK
주문 코드1877177
기술 데이터 시트
Enclosure TypePCB Box
Enclosure MaterialABS
External Height - Metric27mm
External Width - Metric110.1mm
External Depth - Metric57.04mm
IP RatingIP54
Body ColourBlack
NEMA Rating-
External Height - Imperial1.06"
External Width - Imperial4.33"
External Depth - Imperial2.25"
Product Range-
SVHCNo SVHC (21-Jan-2025)
제품 개요

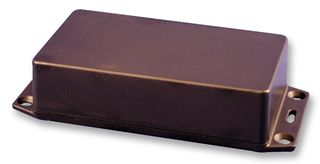

The 1591XXMSFLBK is a Multipurpose Enclosure with flanged lid, made of plastic. Ideally suited for mounting printed circuit boards horizontally, flanged lid is perfect for wall or shelf mounting and enclosure security. Internal sides of enclosure are smooth for easy connector installation, moulded from easy to machine, economical black plastic with a satin texture.
- Strong tongue and groove lid to box construction
- Provides protection against access of dust and splashing water
- Lid and box both having moulded in PC board standoffs
애플리케이션
Industrial
기술 사양
Enclosure Type
PCB Box
External Height - Metric
27mm
External Depth - Metric
57.04mm
Body Colour
Black
External Height - Imperial
1.06"
External Depth - Imperial
2.25"
SVHC
No SVHC (21-Jan-2025)
Enclosure Material
ABS
External Width - Metric
110.1mm
IP Rating
IP54
NEMA Rating
-
External Width - Imperial
4.33"
Product Range
-
기술 문서 (2)
관련 제품
4개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:United States
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:United States
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:39231090
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.045359
