C90-3106F10SL-4S

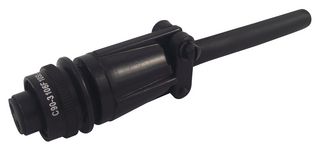

The C90-3106F10SL-4S is a 2-contact female Circular Connector with silver-plated contacts, straight plug with backshell and aluminium alloy, zinc with black chromate finish outer shell. A range of high reliability, rugged, circular connector to meets the high standards of MIL-DTL-5015. Designed for use in harsh and demanding environments, the high specification, cadmium and hexavalent chromium-free range features free plug, panel mount and cable connector orientations in a number of popular shell and layout options.

• Highly durable and rugged connector system
• Solder termination
• Full environmental sealing with use of backshells and sealing gaskets, exceeds IP67
• Threaded and polarised coupling
• Synthetic rubber insulator and grommet
• 13A Current rating
• 5000MΩ Minimum insulation resistance
• 16 to 22AWG Wire size
• 500-operation Durability
• -55 to +125°C Operating temperature

애플리케이션

Commercial, Industrial, Aerospace, Defence, Military
