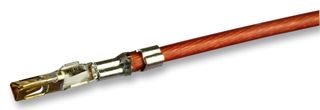

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
더 이상 재고 없음
제품 정보
제조업체HARWIN
제조업체 부품 번호M80-2840045
주문 코드1667044
Product RangeDatamate
기술 데이터 시트
Product RangeDatamate
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max26AWG
Contact PlatingGold Plated Contacts
For Use WithM80-454, M80-455, M80-456, M80-457, M80-458 or M80-459 Moulds
Wire Size AWG Min28AWG
Contact MaterialBeryllium Copper
M80-2840045의 대체 제품
2개 제품을 찾았습니다.
제품 개요
The Datamate series high performance/high reliability Connector range is approved to meet the exacting requirements of British Standard 9525-F0033, this conformity is made possible by Harwin's high reliability 4 finger beryllium copper contact technology. The contact features a 4 finger beryllium copper clip to ensure integrity of connection under the most severe conditions. The Datamate range is ideal for applications where safety is key, the application is subject to high loads of vibration and shock or operates in harsh environments.
- J-Tek and L-Tek fixing variants offer additional security
- Mates with known industry equivalents
- Ideal for COTS applications
애플리케이션
Industrial, Aerospace, Defence, Military
기술 사양
Product Range
Datamate
Contact Termination Type
Crimp
Contact Plating
Gold Plated Contacts
Wire Size AWG Min
28AWG
Contact Gender
Socket
Wire Size AWG Max
26AWG
For Use With
M80-454, M80-455, M80-456, M80-457, M80-458 or M80-459 Moulds
Contact Material
Beryllium Copper
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Great Britain
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Great Britain
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.000071
