페이지 인쇄

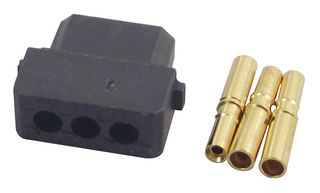

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

| 제조업체 | HARWIN |
|---|---|
| 제조업체 부품 번호 | M80-8980305복사 |
| 제조업체 표준 리드 타임 | 10주 |
| 주문 코드 | 1463042 |
| Product Range | Datamate L-Tek M80 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
135 재고
더 필요하세요?
135 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩4,404 |
| 10+ | ₩3,749 |
| 100+ | ₩3,332 |
| 250+ | ₩3,192 |
| 500+ | ₩3,108 |
| 1000+ | ₩3,046 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩4,404
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | HARWIN |
|---|---|
| 제조업체 부품 번호 | M80-8980305복사 |
| 제조업체 표준 리드 타임 | 10주 |
| 주문 코드 | 1463042 |
| Product Range | Datamate L-Tek M80 |
| 기술 데이터 시트 | |
| Product Range | Datamate L-Tek M80 |
| No. of Contacts | 3Contacts |
| Gender | Receptacle(관련 커넥터 보기) |
| Pitch Spacing | 2mm |
| Contact Termination Type | Crimp |
| No. of Rows | 1 Row |
| Connector Mounting | Panel Mount |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Beryllium Copper |
| SVHC | Lead (04-Feb-2026) |
제품 개요
The M80-8980305 is a 3-contact 2mm female Datamate L-Tek SIL Cable Connector Kit with housing and contacts. Large bore is suitable for 24 to 28AWG cable (Ø1.1mm max insulation), M80-0130005 spare contacts. Housing is made of black UL94V-0 PBT with gold plated beryllium copper contact clip/brass shell contact base and gold plated termination. The M80 series socket has straight connector orientation and cable (crimp) connection type. It is suitable for Ø0.5mm mating pin size. The connector is intended for use as a low voltage connector in high packing density electronic equipment.
- 3A (at 25°C), 2.2A (at 85°C) Current rating
- 20mΩ (initial), 25mΩ (after conditioning) Maximum contact resistance
- 1000MΩ (initial), 100MΩ (after conditioning) Minimum insulation resistance
- 500 operations Durability
애플리케이션
Industrial
기술 사양
| Product Range | Datamate L-Tek M80 |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | Crimp |
| Connector Mounting | Panel Mount |
| Contact Material | Beryllium Copper |
| No. of Contacts | 3Contacts |
|---|---|
| Pitch Spacing | 2mm |
| No. of Rows | 1 Row |
| Contact Plating | Gold Plated Contacts |
| SVHC | Lead (04-Feb-2026) |
관련 제품
3개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Great Britain 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | Y-Ex RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | Lead (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .001 |
