페이지 인쇄
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
84 재고
더 필요하세요?
84 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩50,243 |
15+ | ₩49,197 |
50+ | ₩47,717 |
가격기준Pack of 100
주문 최소수량: 1
주문 배수수량: 1
₩50,243
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체HELLERMANNTYTON
제조업체 부품 번호113-03019
주문 코드842072
AKA4031026108193
기술 데이터 시트
Cable Tie MaterialNylon 6.6 (Polyamide 6.6)
Cable Tie ColourNatural
Cable Tie Length160mm
Cable Tie Width3.5mm
Cable Bundle Diameter Max32mm
Minimum Loop Tensile Strength30lb
Cable Tie TypeStandard
Product Range-
제품 개요

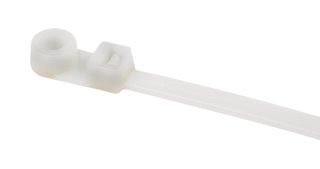

The 113-03019 is a mounting head Cable Tie made of polyamide 6.6. It features one piece bundling and fixing tie offering quick and easy installation. The 'T' range of cable tie has a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is first fitted to the panel and then the cables added. It is ideal for fixing cables, pipes and hoses onto solid surfaces with pre-drilled holes or holes in metal plates.
- Plastic pawl tie closure
- Inside serrated
- UL94V-2 Flammability
- MK20, MK3PNSP2, MK3SP and EVO7 Application tools
애플리케이션
Industrial, Aerospace, Defence, Military, Automotive
기술 사양
Cable Tie Material
Nylon 6.6 (Polyamide 6.6)
Cable Tie Length
160mm
Cable Bundle Diameter Max
32mm
Cable Tie Type
Standard
Cable Tie Colour
Natural
Cable Tie Width
3.5mm
Minimum Loop Tensile Strength
30lb
Product Range
-
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Mexico
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Mexico
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:39269097
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.084
