| 제조업체 | IDEAL POWER |
|---|---|
| 제조업체 부품 번호 | 25HK-AB-120A250-D56-FR복사 |
| 제조업체 표준 리드 타임 | 16주 |
| 주문 코드 | 2630905 |
| Product Range | 25HK-AB-xAz-D56-FR Series |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
1,041 재고
더 필요하세요?
22 1-2 영업일 이내 배송(싱가폴 재고)
1,019 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩19,289 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩19,289
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | IDEAL POWER |
|---|---|
| 제조업체 부품 번호 | 25HK-AB-120A250-D56-FR복사 |
| 제조업체 표준 리드 타임 | 16주 |
| 주문 코드 | 2630905 |
| Product Range | 25HK-AB-xAz-D56-FR Series |
| 기술 데이터 시트 | |
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 30W |
| Output Voltage - Output 1 | 12VDC |
| Output Current - Output 1 | 2.5A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 100V AC to 240V AC |
| Product Range | 25HK-AB-xAz-D56-FR Series |
| Plug Type | Mains Plug Sold Separately |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

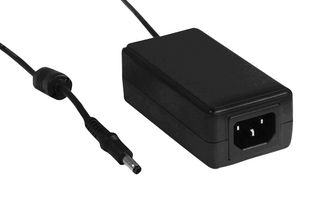

A desktop, 3 pin IEC C14 inlet, power supply with over voltage protection, short circuit protection (with auto recovery) and low power consumption. It also meets Level VI Efficiency Regulations Compliance.
- DC Outer connected to Mains Earth/Ground (Protection Class I product)
- Desk Top 3 Pin IEC C14 inlet
- Approved to International Standards, UL/TUV/BS EN/C-Tick/CB/LPS/PSE/CE/FCC/EMC
- Approved for Environmental standards RoHS & 138 SVHC (REACH), ErP II/CEC VI
- Operating temperature range 0 to 40°C
- Over Voltage, Short Circuit Protected (Auto Recovery)
- No minimum load required
- Mains lead sold separately
기술 사양
| Power Supply Applications | ITE |
|---|---|
| Output Power Max | 30W |
| Output Current - Output 1 | 2.5A |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Power Supply Output Type | Fixed |
| Product Range | 25HK-AB-xAz-D56-FR Series |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Outputs | 1 Output |
|---|---|
| Output Voltage - Output 1 | 12VDC |
| Output Voltage - Output 2 | - |
| Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Output Current - Output 3 | - |
| Input Voltage VAC | 100V AC to 240V AC |
| Plug Type | Mains Plug Sold Separately |
기술 문서 (1)
관련 제품
8개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85044095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .19 |
