BSZ097N04LSGATMA1

Name: Power MOSFET, N Channel, 40 V, 40 A, 0.0081 ohm, PG-TSDSON, Surface Mount
Brand: INFINEON
SKU: 1775501
Availability: InStock

Power MOSFET, N Channel, 40 V, 40 A, 0.0081 ohm, PG-TSDSON, Surface Mount

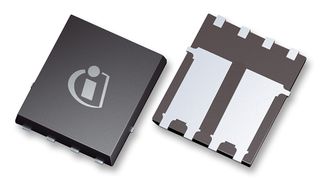

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

제조업체INFINEON

제조업체 부품 번호BSZ097N04LSGATMA1

주문 코드1775501

AKABSZ097N04LS G, SP000388296

기술 데이터 시트

Data Sheet

모든 기술 문서 보기

26,116 재고

더 필요하세요?

26116 3-4 영업일 이내 배송(영국 재고)

수량	가격
1+	₩1,293
10+	₩976
100+	₩666
500+	₩557
1000+	₩429
5000+	₩398

가격기준Each

주문 최소수량: 1

주문 배수수량: 1

₩1,293

부품 번호 /라인 메모 추가

라인 메모

이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,

부품 번호

이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.

제품 정보

제조업체INFINEON

제조업체 부품 번호BSZ097N04LSGATMA1

주문 코드1775501

AKABSZ097N04LS G, SP000388296

기술 데이터 시트

Data Sheet

Channel TypeN Channel

Drain Source Voltage Vds40V

Continuous Drain Current Id40A

Drain Source On State Resistance0.0081ohm

Transistor Case StylePG-TSDSON

Transistor MountingSurface Mount

Rds(on) Test Voltage10V

Gate Source Threshold Voltage Max1.2V

Power Dissipation35W

No. of Pins8Pins

Operating Temperature Max150°C

Product Range-

Qualification-

MSLMSL 1 - Unlimited

SVHCNo SVHC (21-Jan-2025)

제품 개요

The BSZ097N04LS G is an OptiMOS™ N-channel Power MOSFET perfect choice for synchronous rectification in switched mode power supplies (SMPS). In addition it can be used for a broad range of industrial applications including fast switching DC-to-DC converter.

Excellent gate charge x RDS (ON) product (FOM)
Very low ON-resistance RDS (ON)
Ideal for fast switching applications
MSL1 rated
Highest system efficiency
Increased power density
Very low voltage overshoot
Logic level
Superior thermal resistance
100% Avalanche tested
Halogen-free, Green device
Qualified according to JEDEC for target applications

애플리케이션

Power Management, Motor Drive & Control, Consumer Electronics, Computers & Computer Peripherals, Communications & Networking, Portable Devices, Industrial

경고

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

기술 사양

Channel Type

N Channel

Continuous Drain Current Id

40A

Transistor Case Style

PG-TSDSON

Rds(on) Test Voltage

10V

Power Dissipation

35W

Operating Temperature Max

150°C

Qualification

SVHC

No SVHC (21-Jan-2025)

Drain Source Voltage Vds

40V

Drain Source On State Resistance

0.0081ohm

Transistor Mounting

Surface Mount

Gate Source Threshold Voltage Max

1.2V

No. of Pins

8Pins

Product Range

MSL

MSL 1 - Unlimited

기술 문서 (1)

Technical Data Sheet EN
