KITPSC3M5CC2

KITPSC3M5CC2 is a PSOC™ Control C3M5 motor drive control card kit. This evaluation board designed to help engineers in developing PSOC™ Control C3 based motor control solutions. A suitable power stage can quickly be made with available MADK connector (M1/M3/M5) to drive a variety of motors. The board features an isolated onboard debugger for programming and debugging over a USB interface. CC2 is a subset of the MC1 kit without the power board.

• PSOC Control C3M5 PSC3M5FDS2AFQ1
• Connection to MADK boards (M1, M3, M5)
• On-board debugger (SEGGER J-Link LITE)
• 2 User LED - user-controlled LED
• 2 Debug LED & Aux LED - debugger LEDs
• Out-of-the-box configuration
• Sensored or sensorless FOC motor control
• Can be configured to run two motors
• Code examples to shorten development
• Modular setup to adapt new power boards

목차

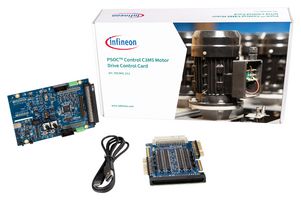

KIT-PSC3M5-CC2 motor control card, Drive adapter card, USB Type-A to USB Type-C cable, Quick start guide.
