KITPSE84AITOBO1

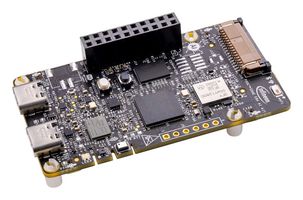

KITPSE84AITOBO1 is a PSOC™ Edge E84 AI evaluation kit. This is a hardware platform focused on Machine Learning (ML) and Edge AI. It enables customers to evaluate Infineon's ML platform DEEPCRAFT™ Studio, as well as ready to deploy ML models, and other software products. This evaluation kit is optimized for rapid prototyping and development of embedded systems, leveraging the versatile PSOC™ Edge E84 MCU. The evaluation kit carries a PSOCT™ Edge E84 MCIJ, with 512Mbit QSPI flash, 128Mbit Octal RAM, and a SIP-based wireless interface based on an CYW55513 AIROCT"' Wi-Fi and Bluetooth@ combo. This kit features an on-board programmer/debugger (KitProg3) SWD debug header, a MIPI-DSI connector, speaker interface, USB host and device interfaces, 10 expansion headers, an IMIJ sensor, a magnetometer, a barometric pressure sensor, a radar, two analogue microphones (PDM interface), and an image sensor.

• Advanced ML with Arm Ethos™-U55 NPU
• Cortex®-M55 CPU with Helium™ DSP
• Low-power Cortex®-M33
• NNLite ultra-low power NPU
• Analog and digital microphones
• XENSIV™ 60GHZ radar sensor
• Digital barometric air pressure sensor
• DEEPCRAFT™ support
• Edge AI acceleration for next-gen apps
• End-to-end ML Solution w/ DEEPCRAFT™ and multiple sensors to collect data

목차

PSOCT" Edge E84 Al evaluation board, OV7675 DVP camera module, Quick start guide.
