페이지 인쇄

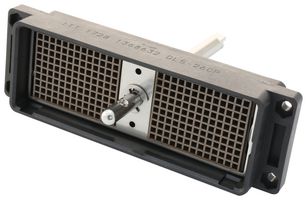

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
42 재고
105 지금 제품을 예약하실 수 있습니다
42 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩300,567 |
10+ | ₩281,608 |
25+ | ₩278,069 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩300,567
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체ITT CANNON
제조업체 부품 번호DL5-260P
주문 코드2677949
Product RangeITT Cannon DL
AKA111986-0014
기술 데이터 시트
Product RangeITT Cannon DL
No. of Contacts260Contacts
Pitch Spacing2.54mm
GenderPlug(관련 커넥터 보기)
Contact Termination TypeCrimp
No. of Rows10Rows
Row Pitch2.54mm
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCNo SVHC (20-Jun-2016)
제품 개요
The DL5-260P is a 260-way Plug with gold flash copper alloy contacts, the single hand actuation and the black glass-filled thermoplastic insulator. The DL-series ZIF connector can be mated and unmated in less than 2second and accepts 42 to 18AWG wire range.
- 5000MΩ Insulation resistance
- -55 to +105°C Operating temperature range
- UL94V-1 Flammability rating
애플리케이션
Industrial, Medical, Commercial, Computers & Computer Peripherals
기술 사양
Product Range
ITT Cannon DL
Pitch Spacing
2.54mm
Contact Termination Type
Crimp
Row Pitch
2.54mm
Contact Plating
Gold Plated Contacts
No. of Contacts
260Contacts
Gender
Plug
No. of Rows
10Rows
Contact Material
Copper Alloy
SVHC
No SVHC (20-Jun-2016)
기술 문서 (1)
DL5-260P의 대체 제품
1개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (20-Jun-2016)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.089
