주문 가능
제조업체 표준 리드 타임: 7주
입고 시 알림 요청
수량 | 가격 |
---|---|
1+ | ₩67,424 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩67,424
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체KNIPEX
제조업체 부품 번호08 26 145
주문 코드2545677
AKAGTIN UPC EAN: 4003773079361
기술 데이터 시트
Plier StyleNeedle Nose
Jaw Opening Max-
Overall Length145mm
Product Range-
SVHCNo SVHC (14-Jun-2023)
제품 개요

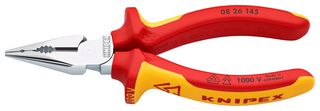

Handy use when working in confined areas thanks to slim head design and pointed jaws (anti-twist). Gripping surfaces with special convex contour on one side for secure gripping of flat parts. Milled groove in the gripping area permits small parts such as nails, pins and bolts to be held and pulled. The reliable and diverse combination pliers when out and about. Easy cutting thanks to the high leverage joint. With cutting edges for soft, medium-hard and hard wire. Long service life and stable tips. High-grade special tool steel, forged, multi stage oil-hardened.
- Small High Leverage Combination Pliers with pointed jaw
- For all common installation and repair work
- Handy use when working in confined areas thanks to slim head design and pointed jaws (anti-twist)
- Gripping surfaces with special convex contour on one side for secure gripping of flat parts
- Milled groove in the gripping area permits small parts such as nails, pins and bolts to be held and pulled
- The reliable and diverse combination pliers when out and about
- Easy cutting thanks to the high leverage joint
- With cutting edges for soft, medium-hard and hard wire
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
- Long service life and stable tips
- VDE tested
- Cutting capacity of hard wire Ø 2mm
- Cutting capacity for medium-hard wire Ø 3mm
- Cutting capacity Cu cable, stranded: up to a diameter of 8mm
- Cutting capacity Cu cable, stranded: 16mm²
기술 사양
Plier Style
Needle Nose
Overall Length
145mm
SVHC
No SVHC (14-Jun-2023)
Jaw Opening Max
-
Product Range
-
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:82032000
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:해당 없음
RoHS 프탈레이트 준수:해당 없음
SVHC:No SVHC (14-Jun-2023)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.164
