제품 정보
제조업체KNIPEX
제조업체 부품 번호90 25 25
주문 코드4177187
기술 데이터 시트
Pipe Cutter TypeAluminium Composite , Plastic
Overall Length210mm
Pipe Dia Max26mm
Product Range-
제품 개요

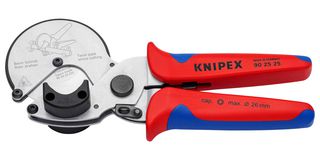

90 25 25 is a pipe cutter for composite and plastic pipes. Up to 60% less effort: the freely rotating cutting wheel allows the pipe to be rotated with minimal friction when cutting. It provides optimum cutting results: the rotation allows the cutting wheel to penetrate the pipe effortlessly with minimal deformation. It cuts aluminium composite and plastic conduit pipes more easily than conventional shears with a fixed blade.
- Wide plastic supports allow perfect right-angled cuts
- Also suitable for composite pipes with increased aluminium layer thickness (e.g. Geberit Mepla)
- For cutting composite and plastic pipes up to Ø 26mm
- Allows for very short correction sections
- With locking mechanism for safe transport
- With ergonomic multi-component handles
- Dimension is 210 x 81 x 38mm
메모
Spare cutting wheel available (Art. No. 90 25 25 E01).
기술 사양
Pipe Cutter Type
Aluminium Composite , Plastic
Pipe Dia Max
26mm
Overall Length
210mm
Product Range
-
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:82034000
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:해당 없음
RoHS 프탈레이트 준수:해당 없음
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.44
