59145-1-S-02-A

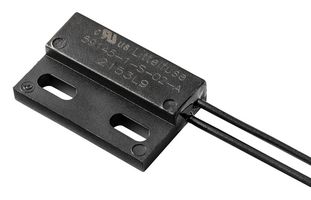

59145-1-S-02-A is a 59145 series flange mounting reed sensor. It’s case design enables screw or adhesive mounting and the wires exit from top right hand side. It is also available with left hand exit - see 59150 Series. It is capable of switching up to 265VAC/300VDC at 10VA. The 59145 functions best with the matching actuator 57145-000. Typical applications include position and limit sensing, security system switch, linear actuators and door switch.

• Two-part magnetically operated proximity sensor
• 8.57mm x 19.05mm x 6.35mm size
• Hermetically sealed, magnetically operated contacts
• No standby power requirement
• Operates through non-ferrous materials such as wood, plastic or aluminium
• Simple installation and adjustment
• Normally open contact
• 300mm cable length
• Tinned leads

메모

57145 actuator is sold separately.
